Discover a new tool for the design of medium power and high frequency magnetic components.

01

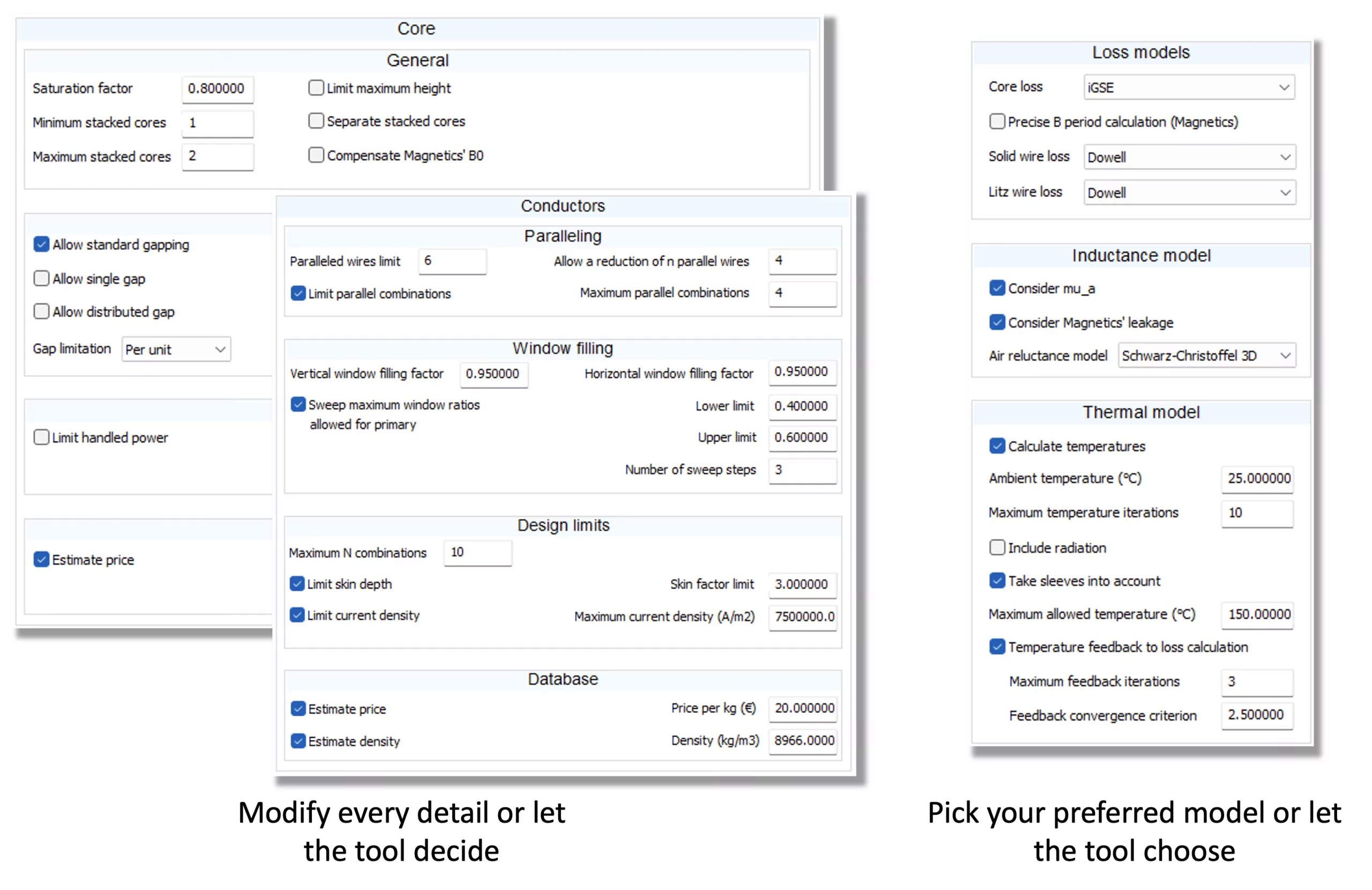

Versatile

A single design tool for every need:

• For expert users: every parameter is configurable, from models and limitations to result visualization.
• For non-expert users: the standard configuration allows the device’s design with the minimum input data.

02

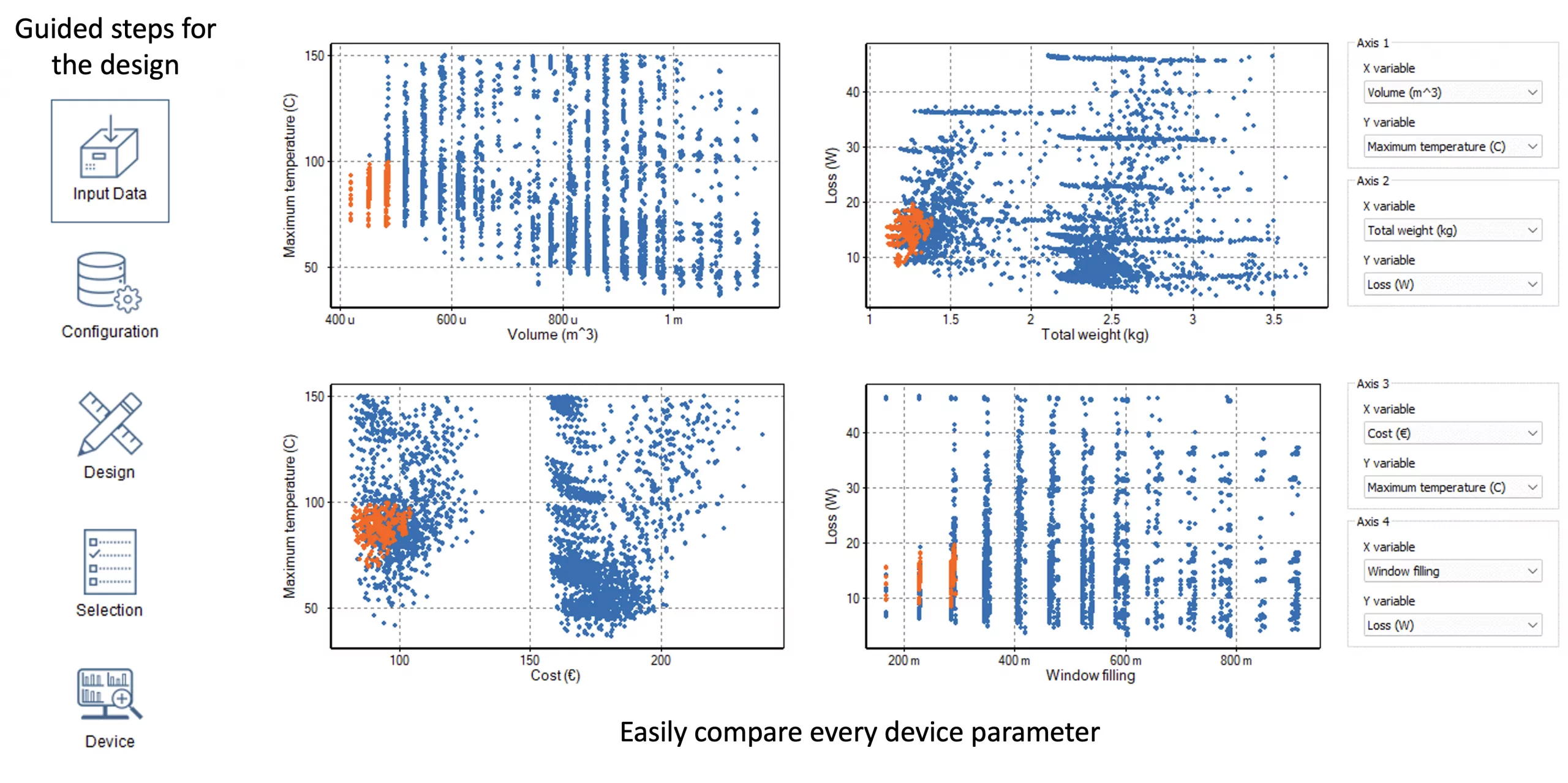

Intuitive Interface

• Just five guided steps for the full design.
• Select up to six figures of merit and compare thousands of designs immediately.

03

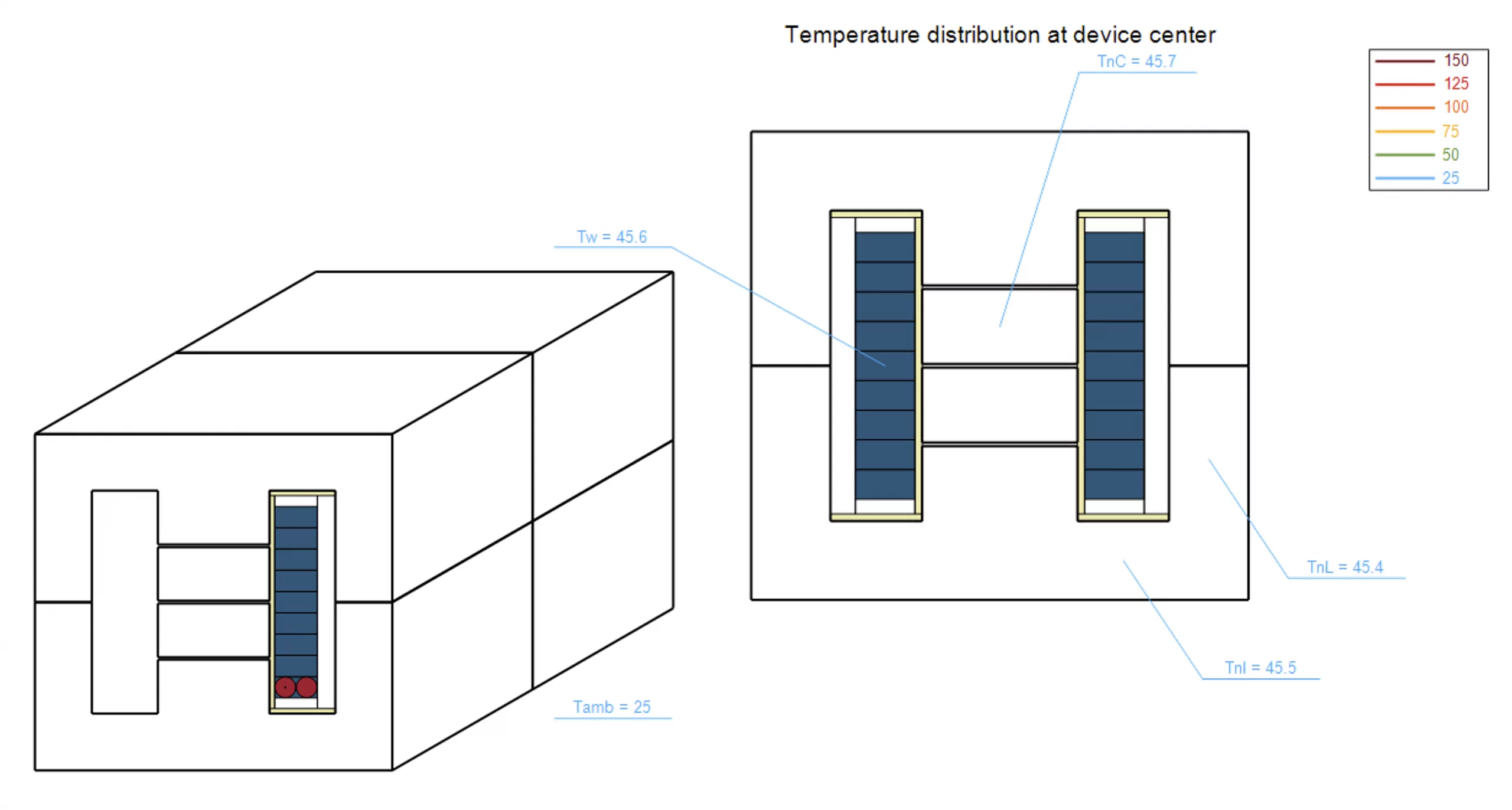

Scalable

From low to high power in a single tool:

• Cores can be stacked, allowing a wide range from less than a watt to kilowatts.
• Temperature can be limited to ensure continuous operation at high loads.

04

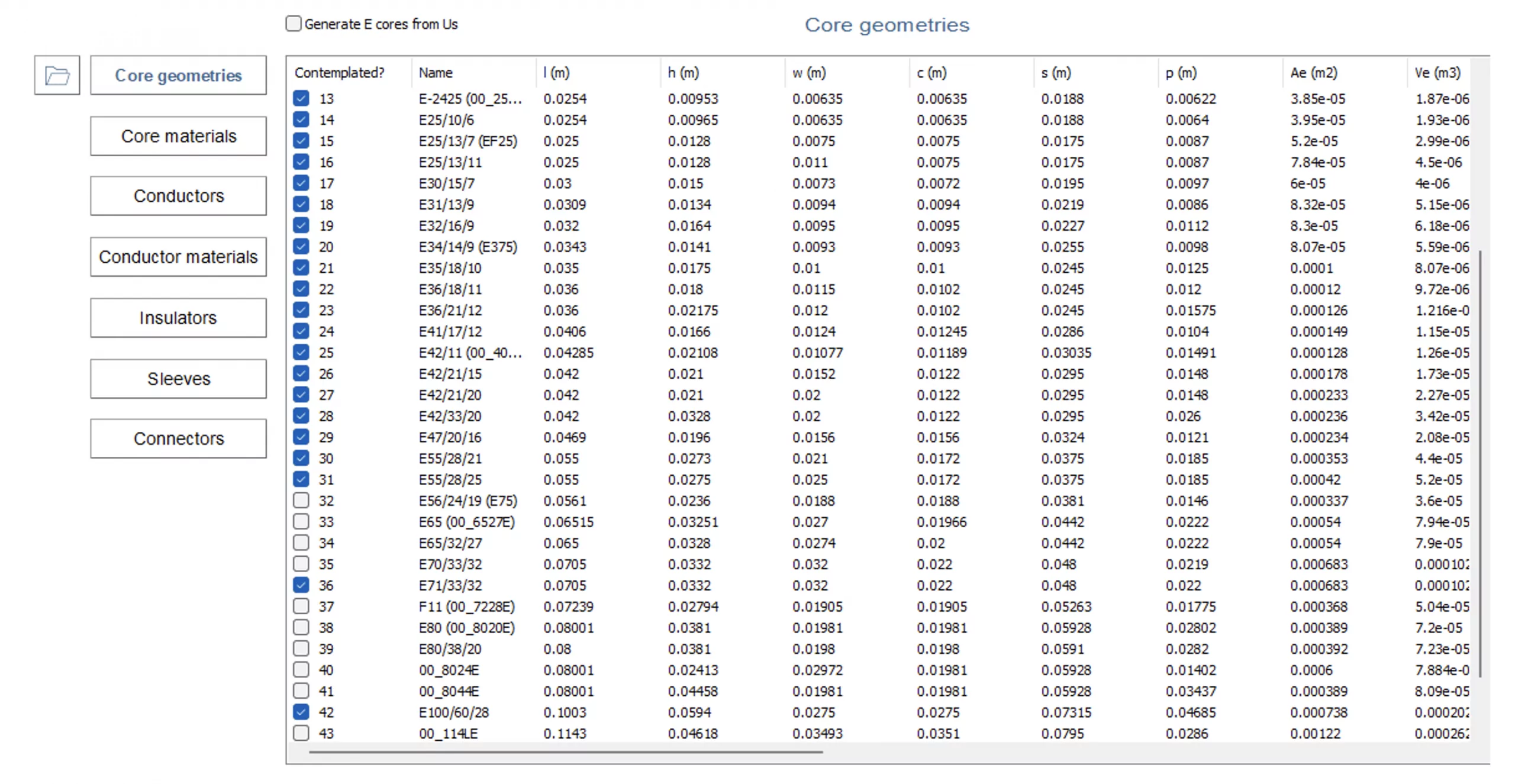

Complete Database

A wide range of options for:

• Core geometries.
• Core materials.
• Conductor geometries.
• Conductor materials.
• Electrical insulators.
• Wire sleeves.
• Connectors.

05

Gap Distributions

• Standard gapping: same single gap for every leg
• Concentrated gap: a single gap in one of the legs.
• Distributed gap: a gap distributed into several smaller gaps.

06

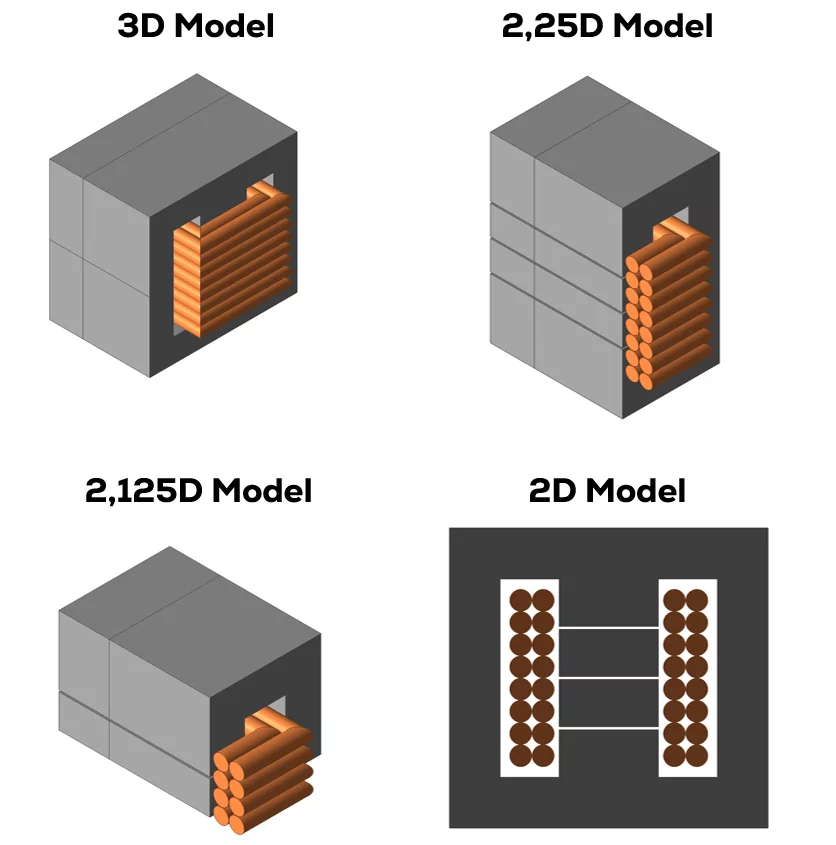

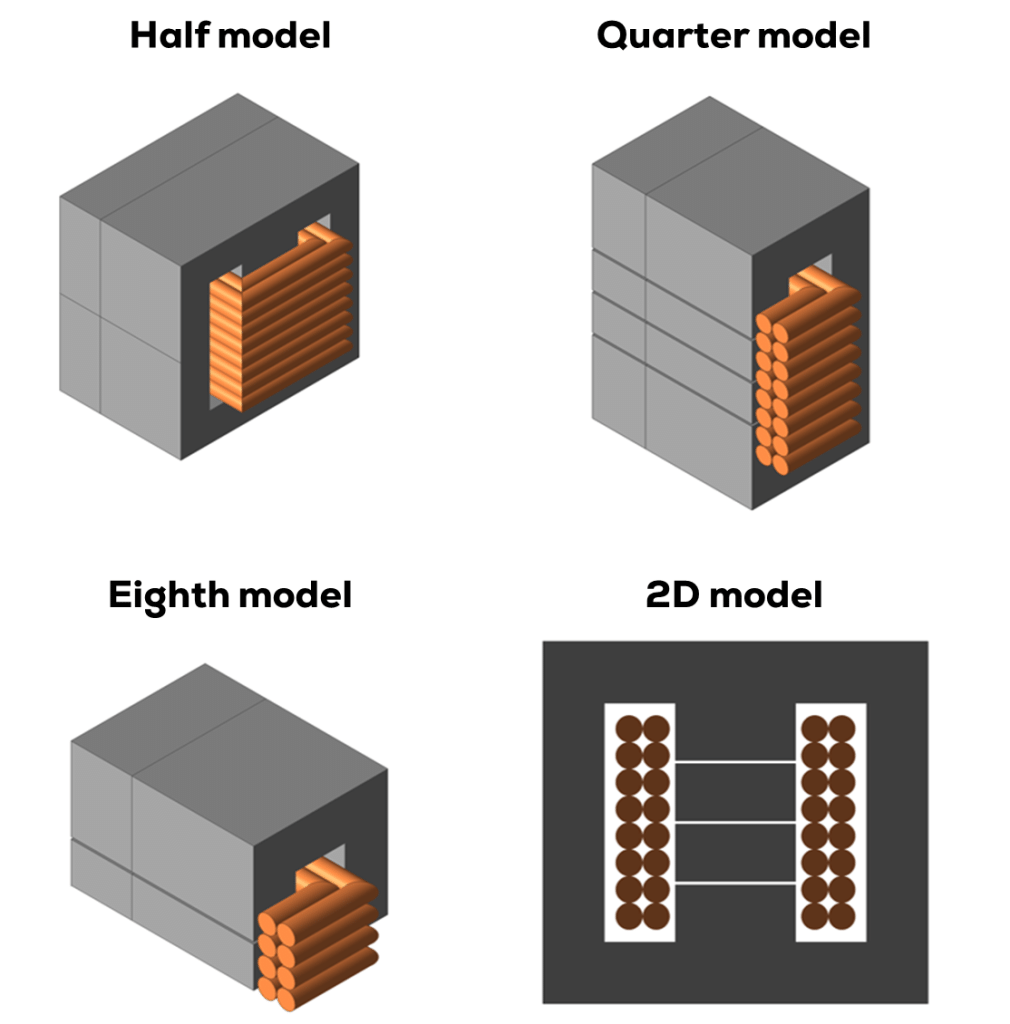

FEM Simulation

Automatically generated by SmartNetics:

• Full 3D model: including core, insulators, and wires without geometry simplifications
• Symmetry simplifications: simulation can be sped up taking advantage of core symmetries while maintaining 3D accuracy.
• Model reduction: 2D model built from the 3D one, for faster simulations.
• Magnetic, electrostatic, and thermal simulations.

07

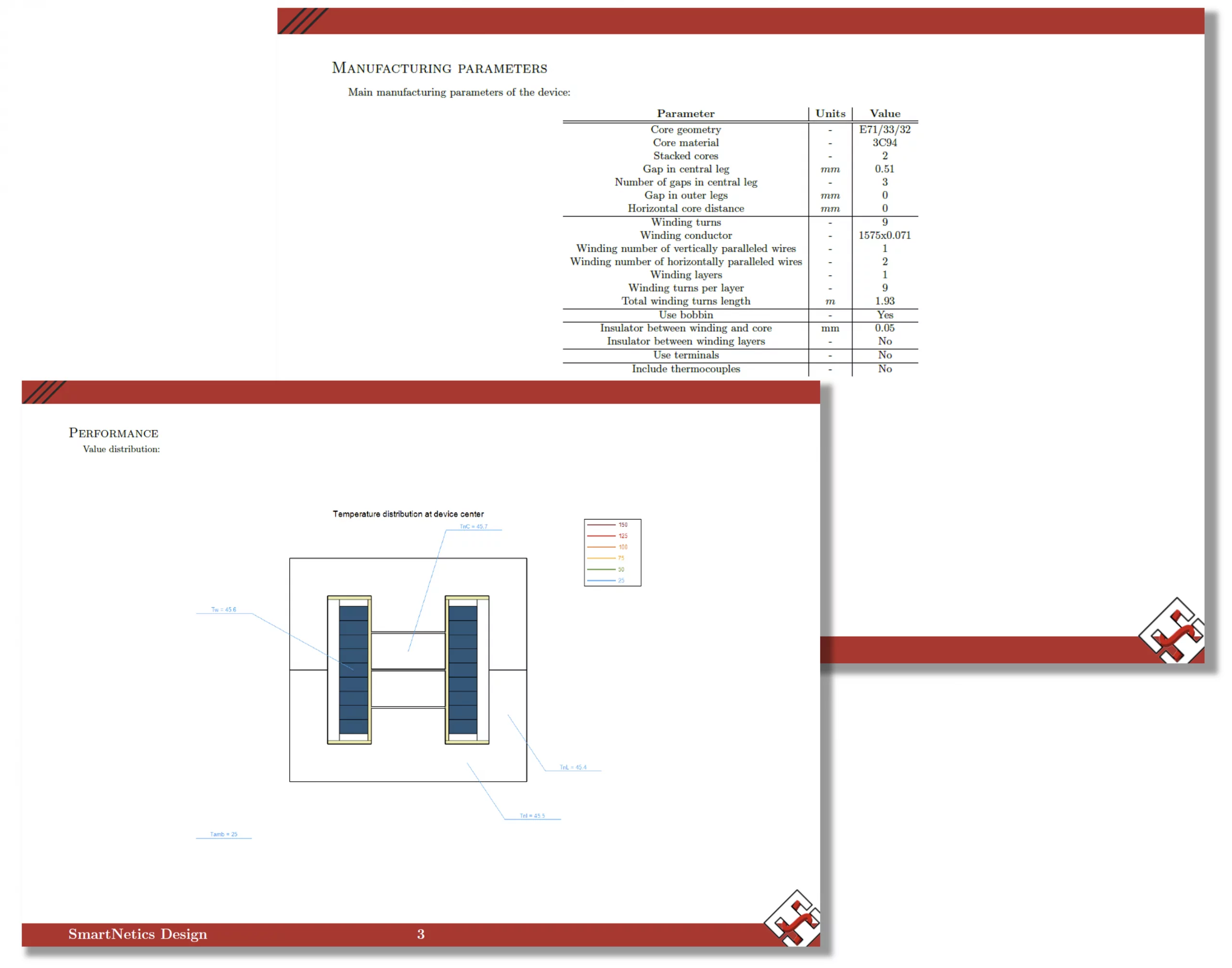

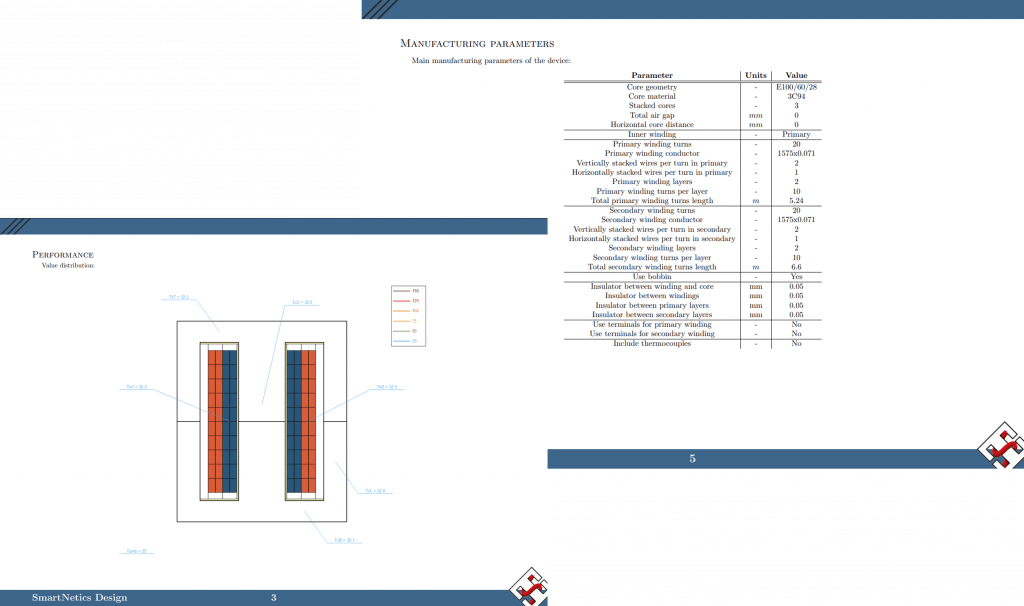

Manufacturing Report

• Not a black-box design: every parameter is provided.
• All the information in a single high-quality PDF document. Seamless data transfer for designers and manufacturers.

08

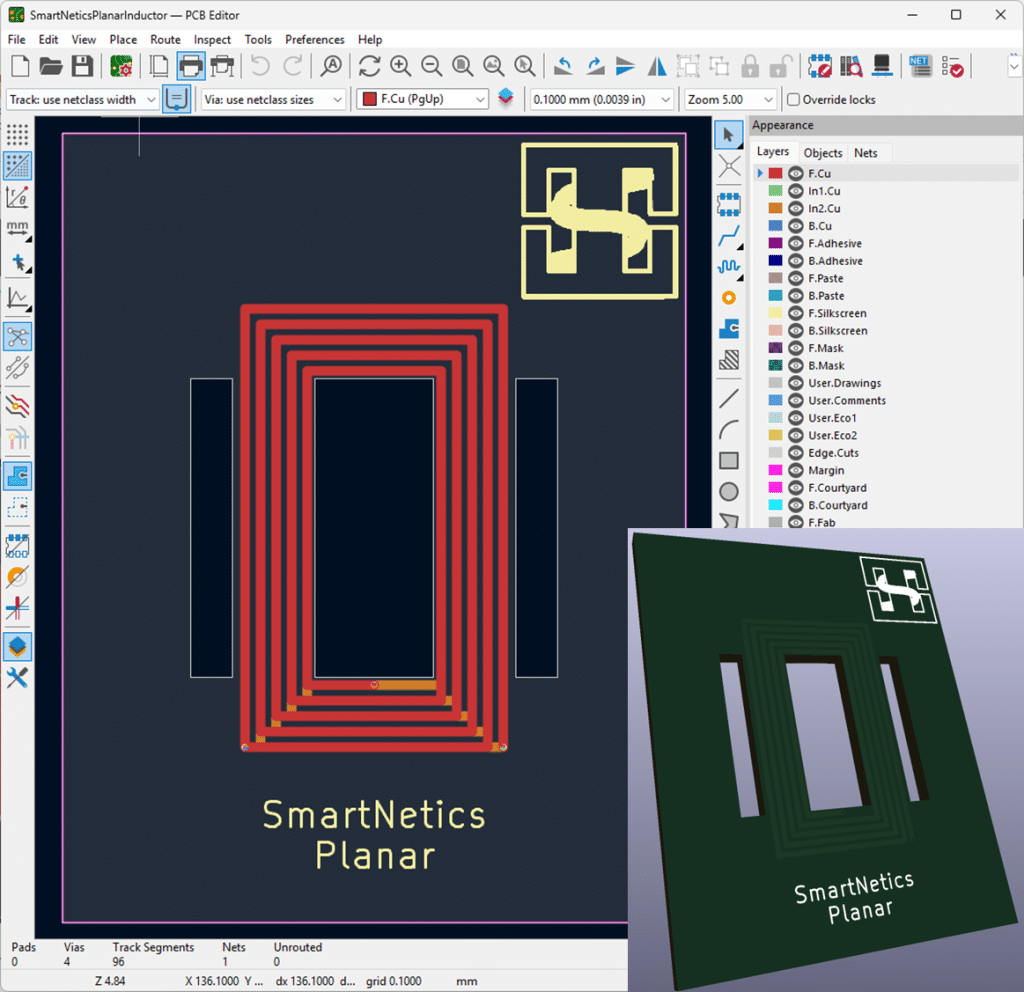

Planar magnetics

Automatically generated by SmartNetics:

• Design your planar transformers and inductors in PCB.
• Drastically reduce your design time by automatically exporting your PCB to KiCad, including traces, vias, core holes and stack-up
