Versatile and Flexible Power Converter for rapid HW prototyping and validation.
SmartRPP is a flexible and versatile power converter designed for rapid hardware prototyping and validation, enabling quick testing and optimization of power electronics systems.
- Configurable: can be used as two half-bridges or one full bridge.
- Up to 20 kW output power.
- Switching frequency up to 500 kHz.
- Multiple topologies implementation: Buck, Boost, Four Switch Buck-Boost, Dual Active Bridge, Resonant topologies, etc.
- Can achieve 0% or 100% duty cycle in both half bridges.
- Based on SiC MOSFET technology.
- Forced convection cooled.
- Simplified interface between Rapid HW Prototyping and control board
Coming soon!
Multiple topologies implementation
Buck, Boost, Four Switch Buck-Boost, Dual Active Bridge, Resonant topologies, etc.
Four Switch Buck-Boost
Dual Active Bridge
Hardware

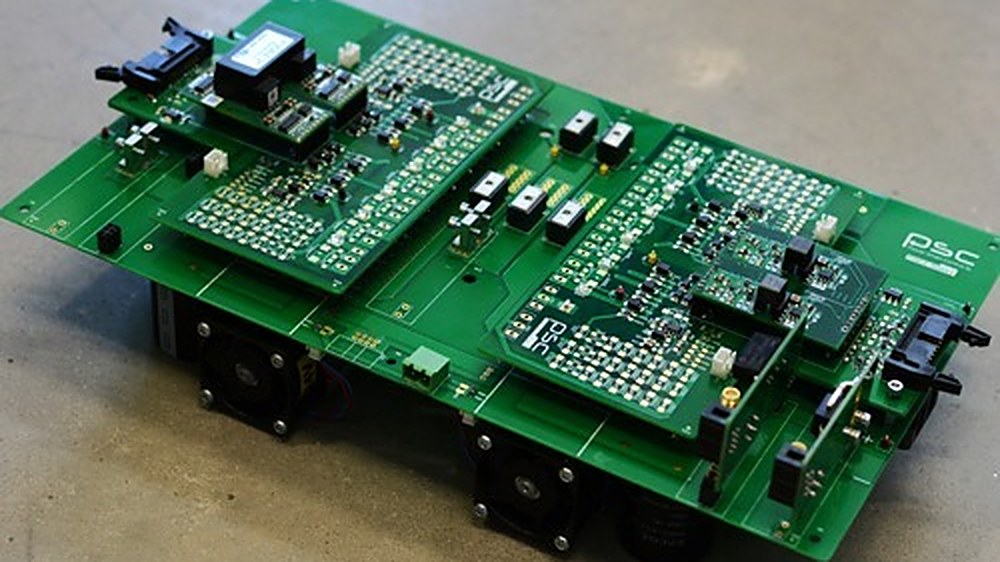

The Versatile and Flexible Power Converter is based on a modular system, consisting of a main frame including the power stage, two driver boards and several isolated voltage and current sensors.
Specifications
Power module
- Maximum DC voltage500 V
- Maximum leg current80 A
- Maximum switching frequency500 kHz
- Maximum Output Power20 kW
Driver board
- Peak current32 A
Isolated voltage sensor
- Sensitivity3.388 mV/V
- Rating0 – 600 V
- Bandwidth275 kHz
Isolated current sensor
- Sensitivity13.2 mV/A
- Rating±100 A
- Bandwidth200 kHz
Prototype your power converter with SmartRPP
Download the brochure or ask us for a quote.
