smartnetics
We present one of the latest developments by PSC: Smartnetics.
Discover a new tool for the design of medium power and high frequency magnetic components.

Smartnetics can perform an exhaustive and complete analysis that allows you to obtain the design that suits all your needs and specifications without requiring advanced knowledge of the field.
Our tool is currently under development and will be ready later this year, however, discover its main features and ask for more information if you are interested.

Versatile

A single design tool for every need:

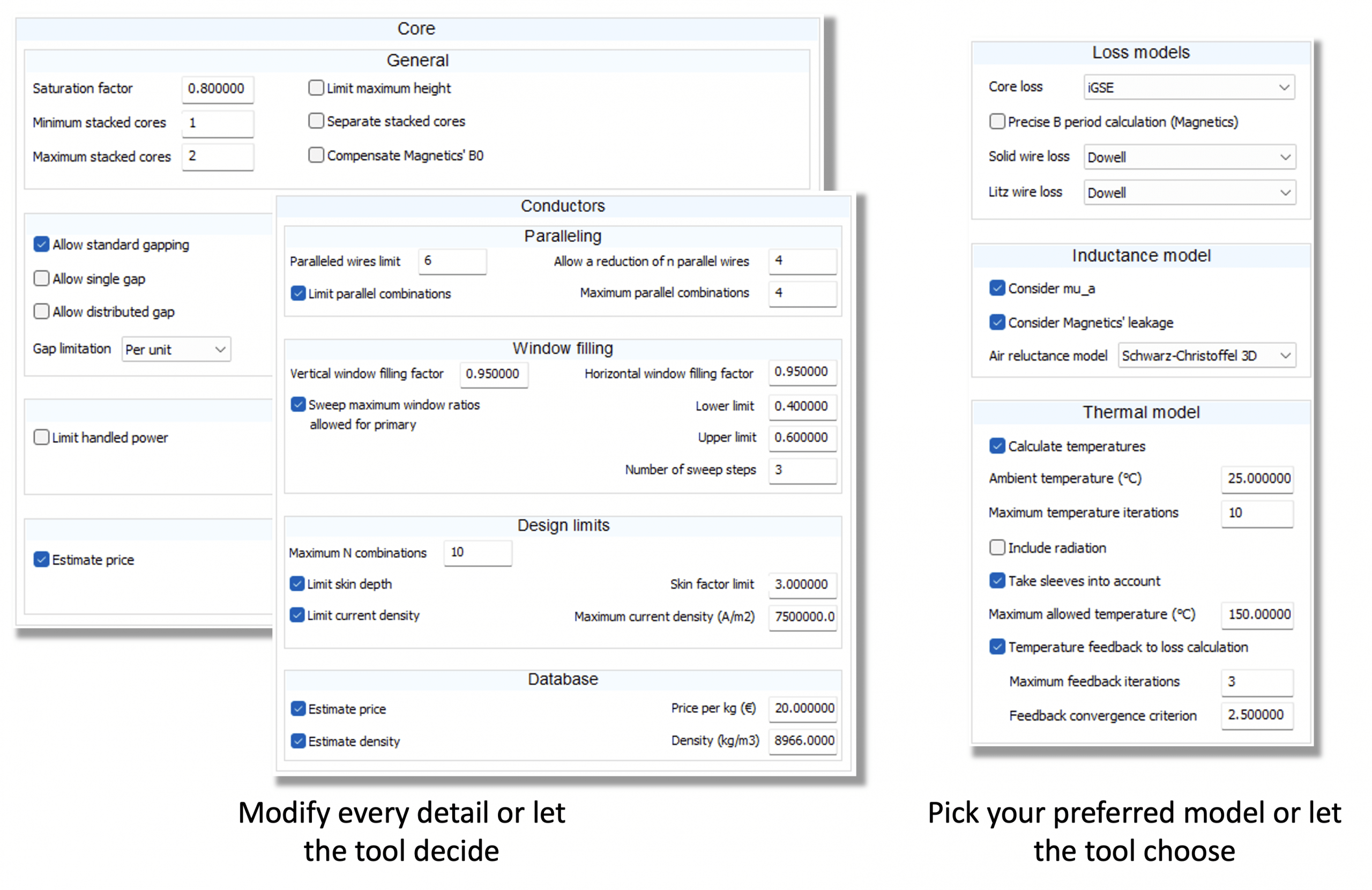

  • For expert users: every parameter is configurable, from models and limitations to result visualization.
  • For non-expert users: the standard configuration allows the device’s design with the minimum input data.
Intuitive Interface

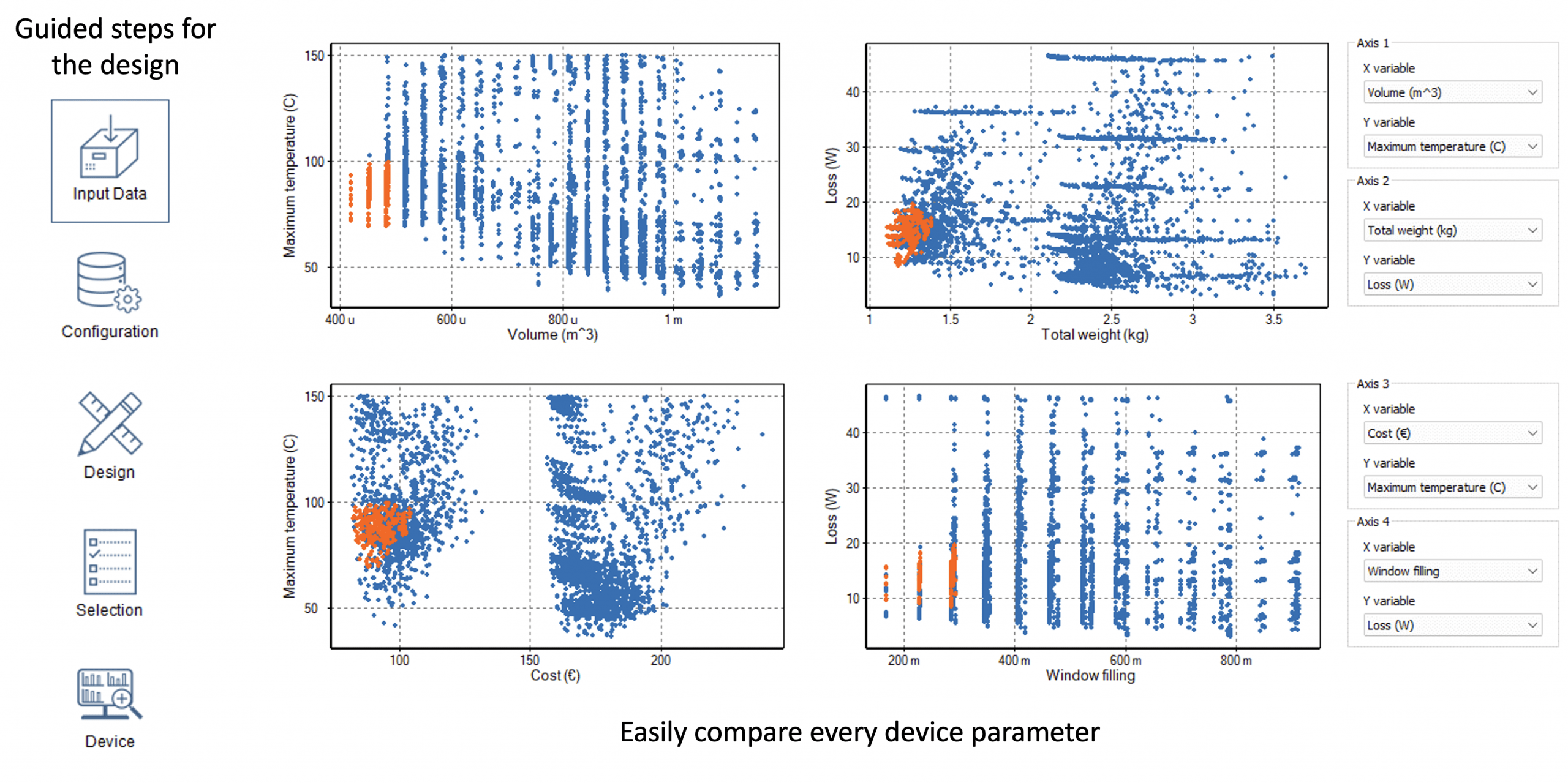

  • Just five guided steps for the full design.
  • Select up to six figures of merit and compare thousands of designs immediately.
Scalable

From low to high power in a single tool:

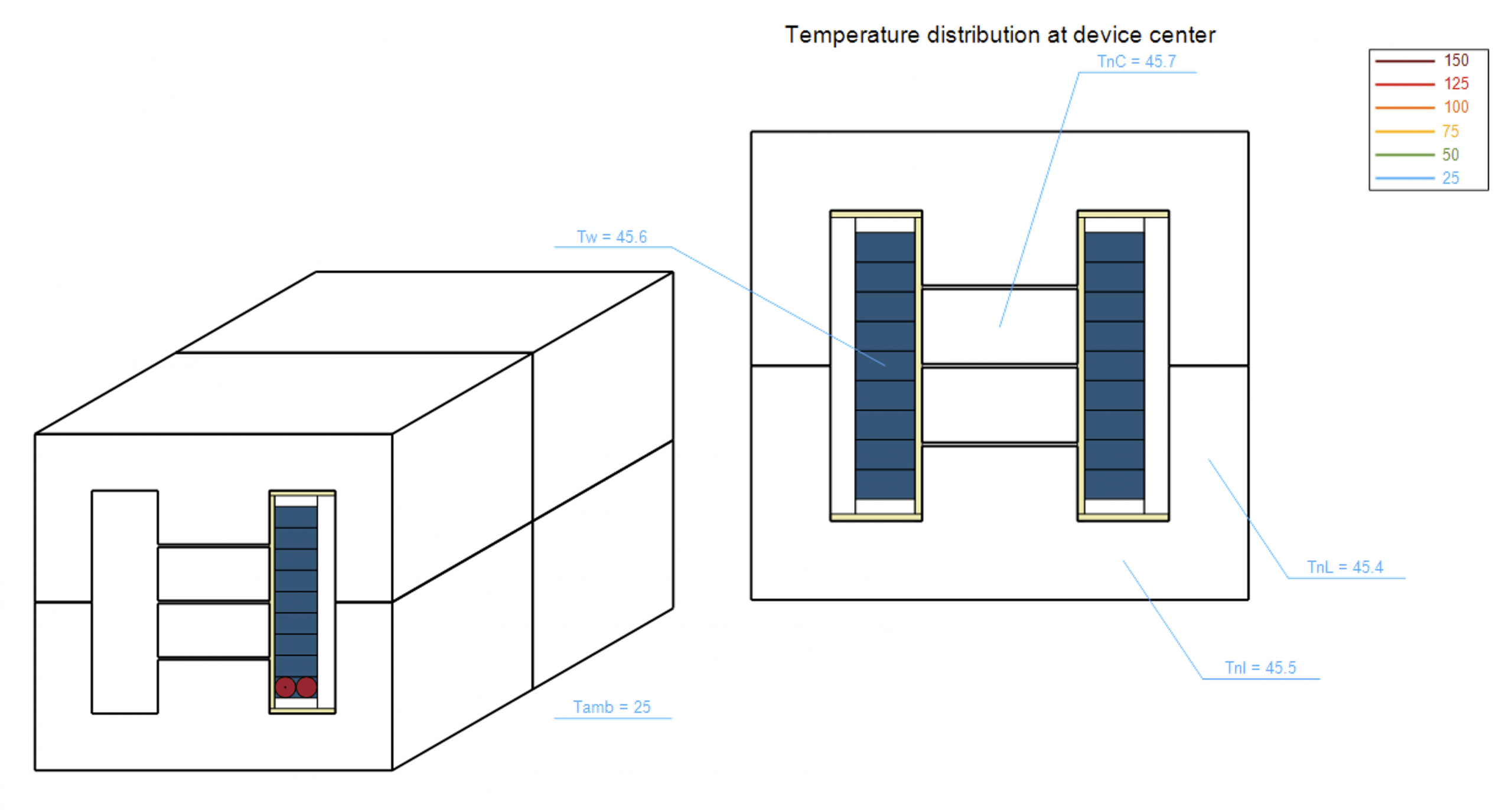

  • Cores can be stacked, allowing a wide range from less than a watt to kilowatts.
  • Temperature can be limited to ensure continuous operation at high loads.

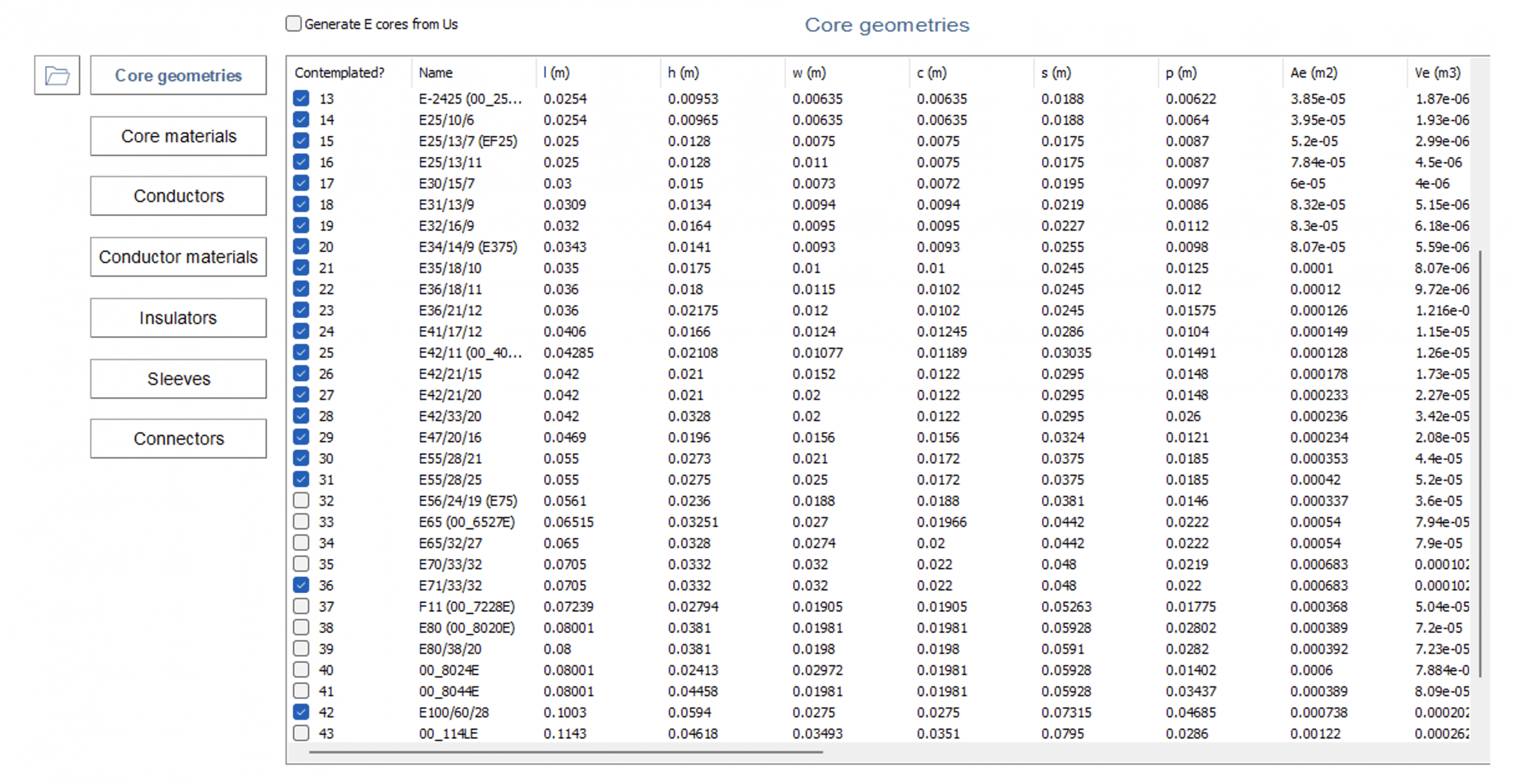

Complete Database


A wide range of options for:

  • Core geometry.
  • Core materials.
  • Wire geometry.
  • Electrical insulators.
  • Connectors.

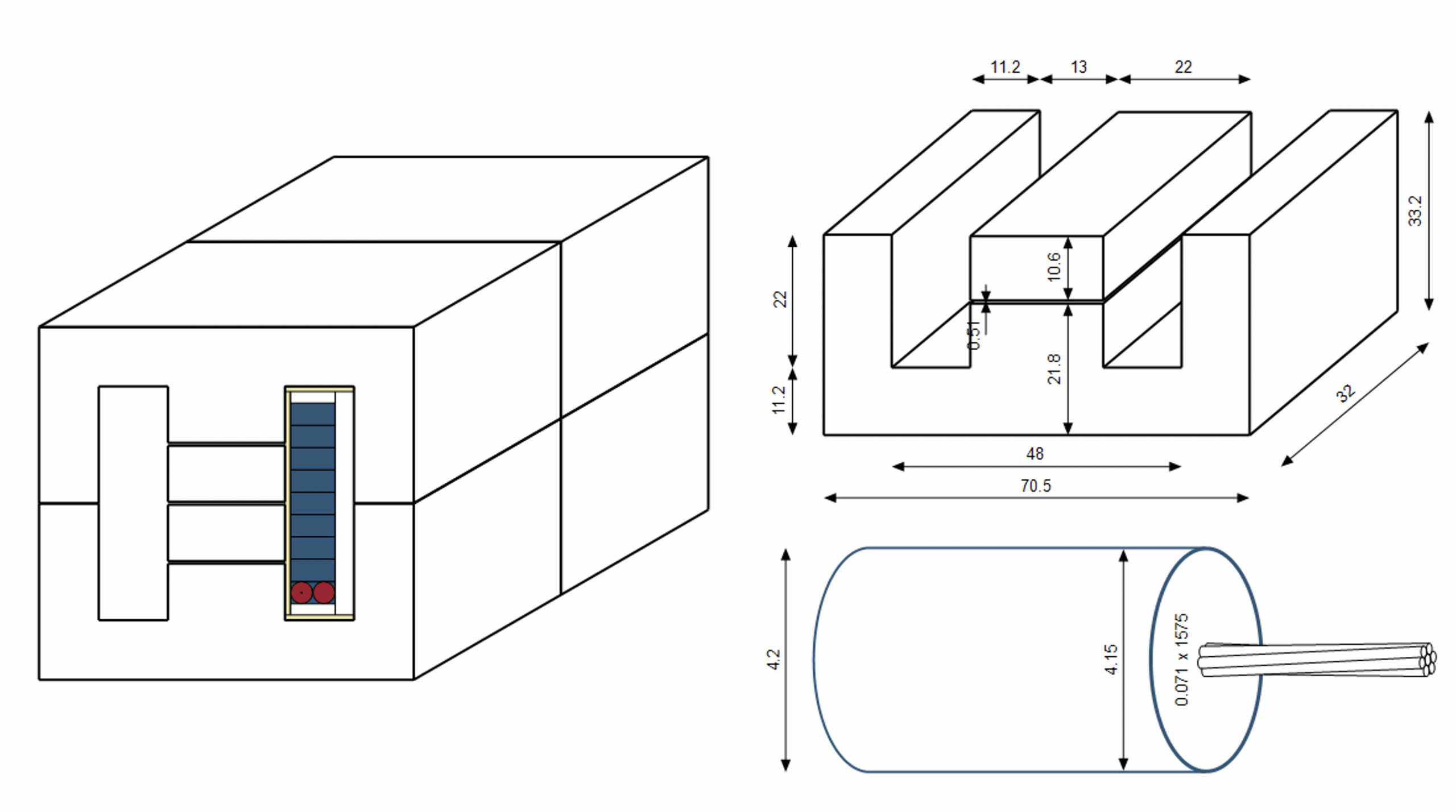

Gap Distributions
  • Standard gaping: same single gap for every leg
  • Concentrated gap: a single gap in one of the legs.
  • Distributed gap: a gap distributed into several smaller gaps.
FEM Simulation


Automatically generated by Smartnetics:

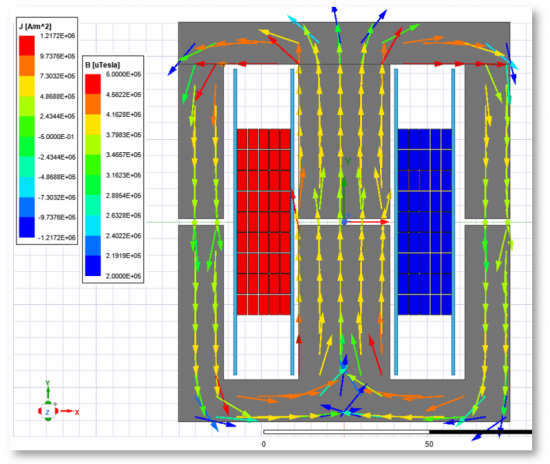

  • Full 3D model: including core, insulators, and wires without geometry simplifications
  • Symmetry simplifications: simulation can be speed up taking advantage of core symmetries while maintaining 3D accuracy.
  • Model reduction: 2D model built from the 3D one, for fastest simulations.

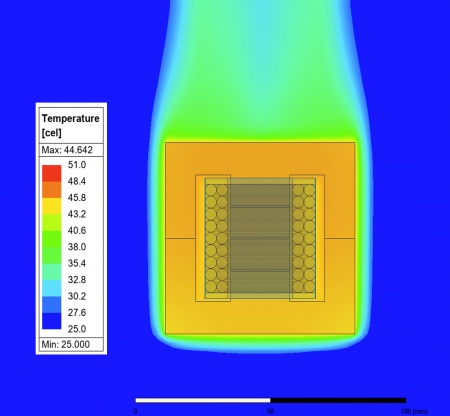

  • Magnetic, electrostatic, and thermal simulations.

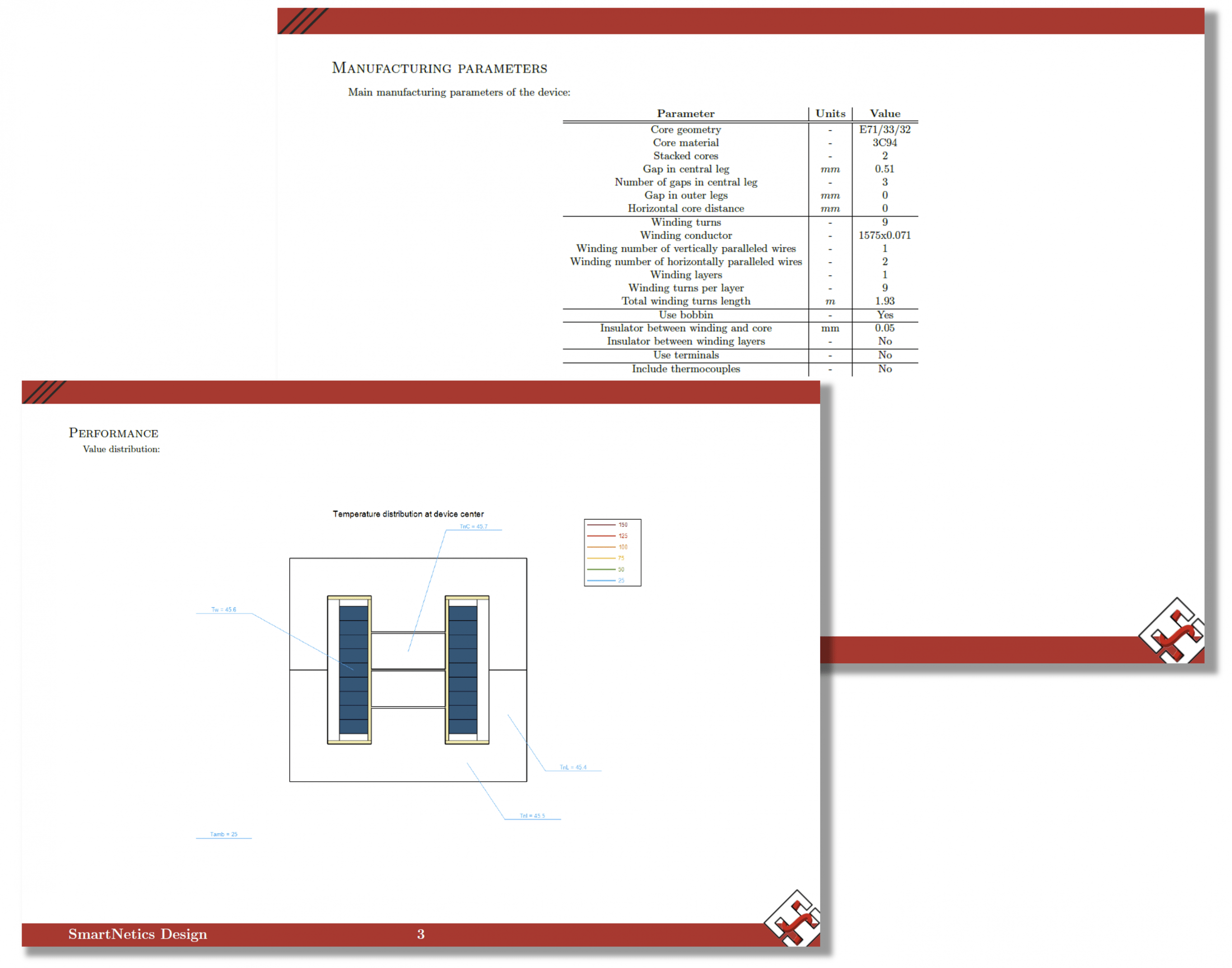

Manufacturing Report
  • Not a black-box design: every parameter is provided.
  • All the information in a single high-quality pdf document. Seamless data transfer for designers and manufacturers.
Request a Design
  • Our tool has been validated with multiple designs for DC-DC and AC-DC topologies.
  • Do you want our team to design your inductor or transformer? Give us your specifications, and we will provide you with the best design and the possibility of manufacturing samples for prototyping.
